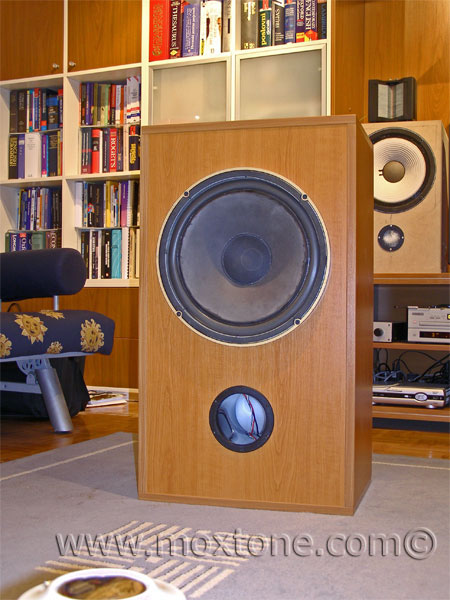

TANNOY HPD385 (15'')

(16 December 2007)

Sound clip: Here is the sound of the Tannoys (mp3 ) hooked up to the Dufresne amplifier, as recorded with a Neumann stereo studio microphone positioned about 2 meters away from my hi-fi system.

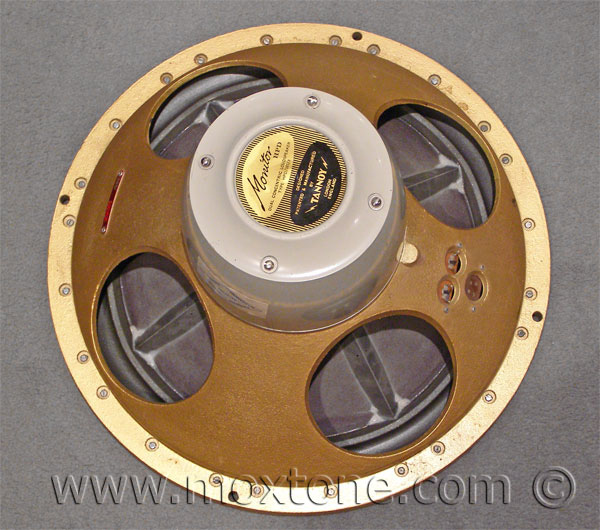

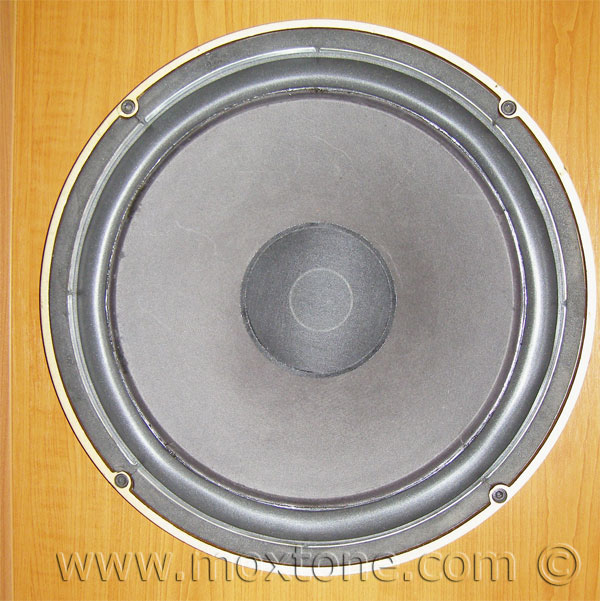

Tannoy HPD385 Tannoy resurrounded

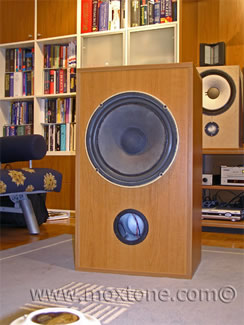

Tannoy HPD385 after the re-surround job by yours truly
(click to enlarge)

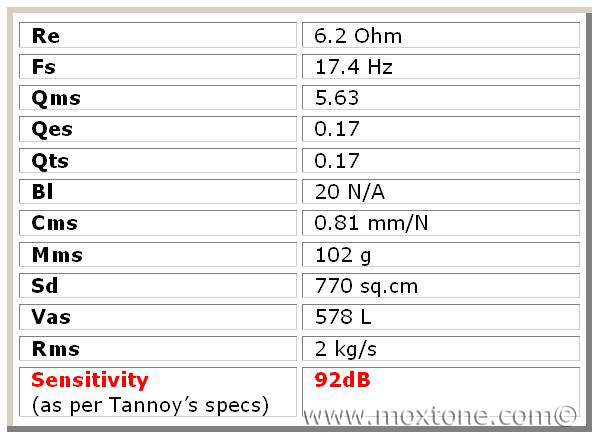

Tannoy HPD385 TS parametersT/S parameters of the drivers after the re-surround

Tannoy crossoverCustom designed crossover by Moxtone Lab

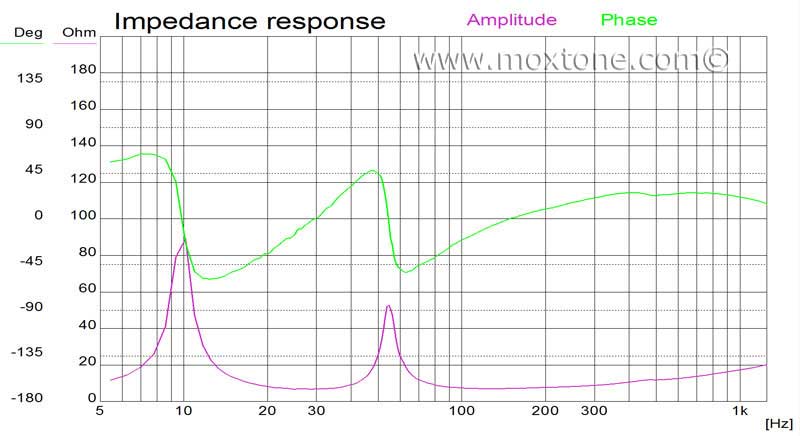

Tannoy woofer thumb Tannoy CSD Tannoy impedance Tannoy woofer boxed Tannoy impedance boxed Tannoy

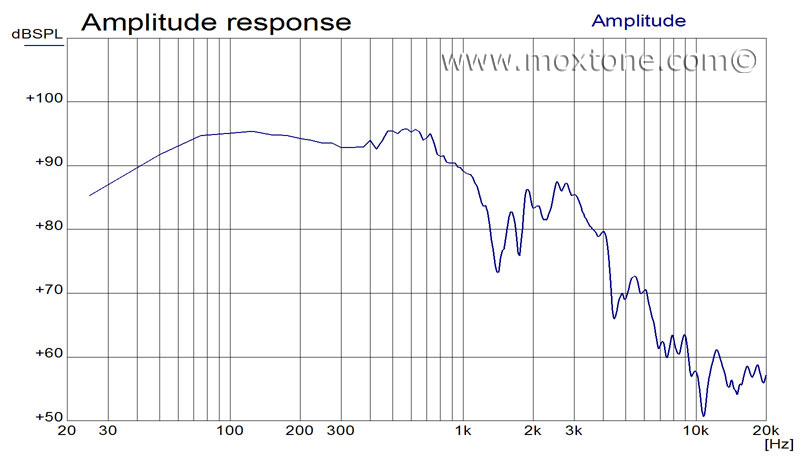

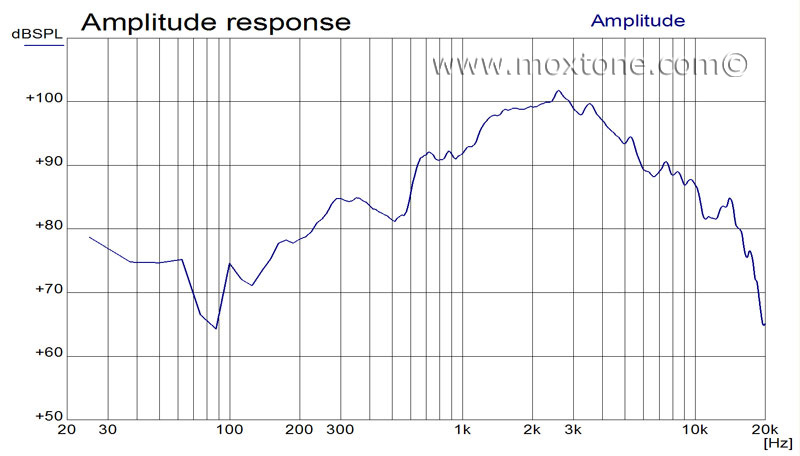

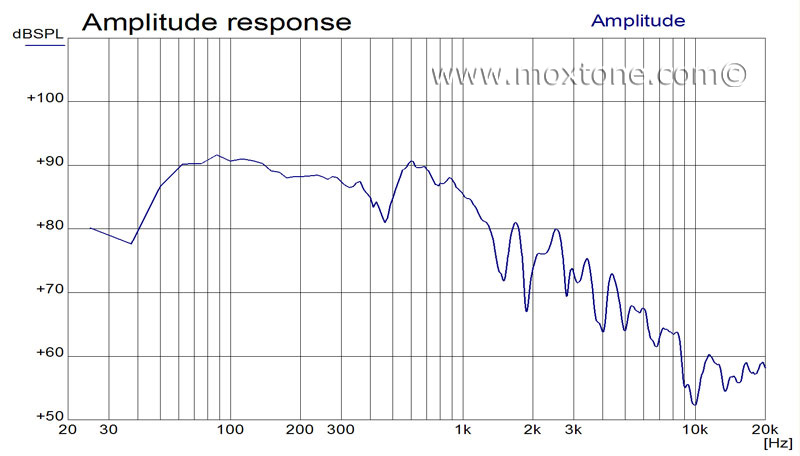

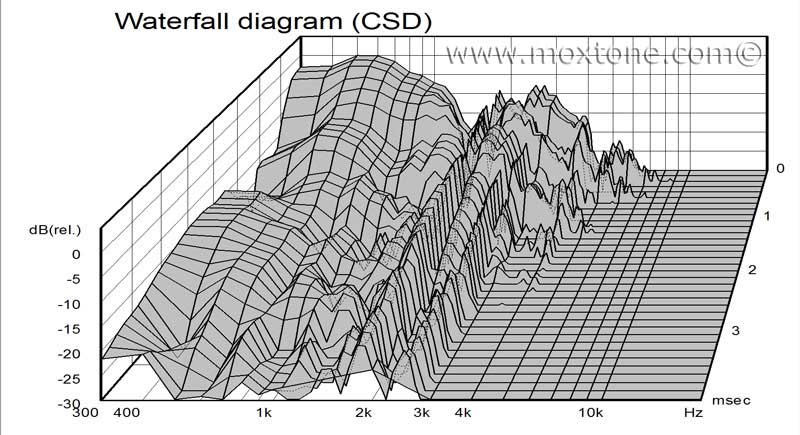

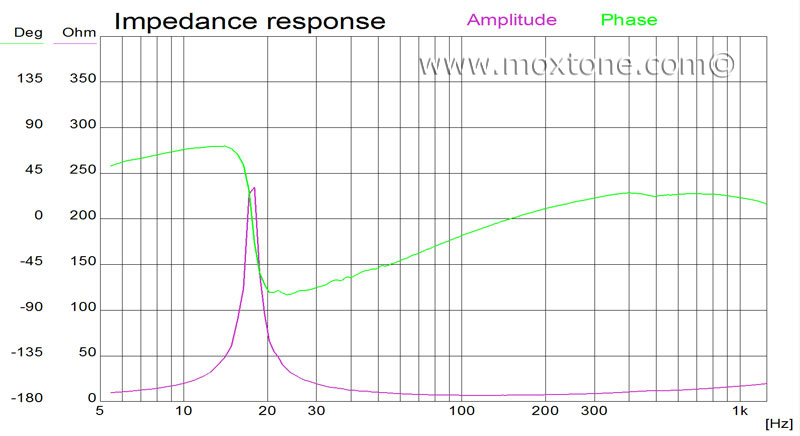

Frequency response of the woofer Waterfall diagram of the woofer Impedance/phase response of the woofer Frequency response of the woofer mounted in the box Impedance/phase response of the woofer mounted in the box Frequency response of the tweeter
Tannoy Tannoy LPF Tannoy HPF Tannoy Tannoy on axis

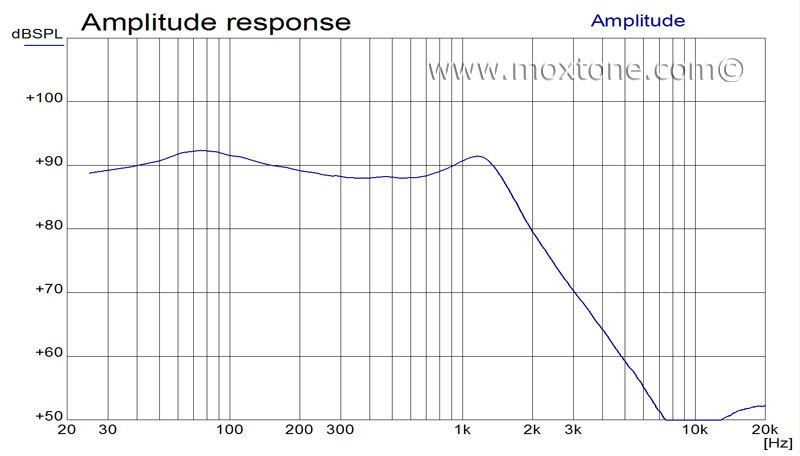

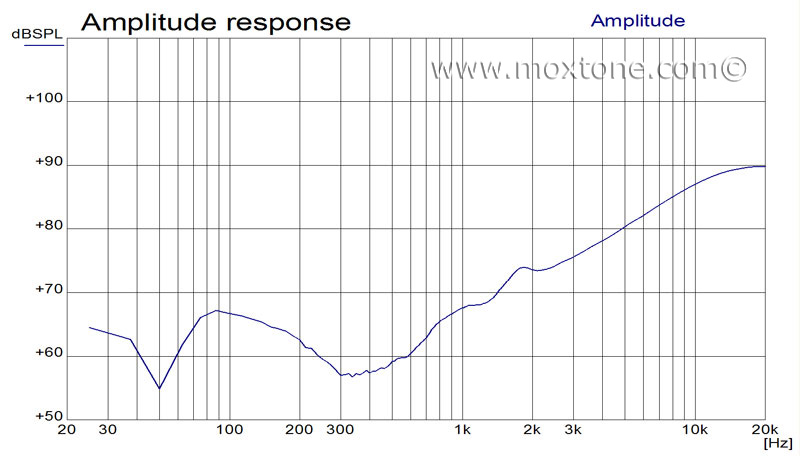

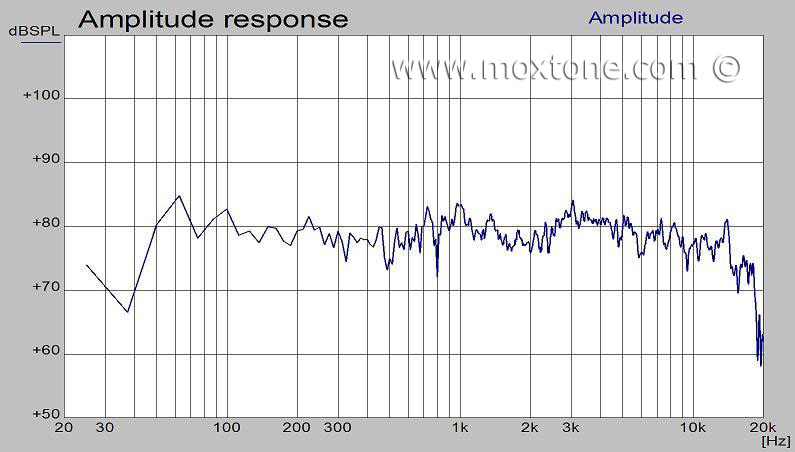

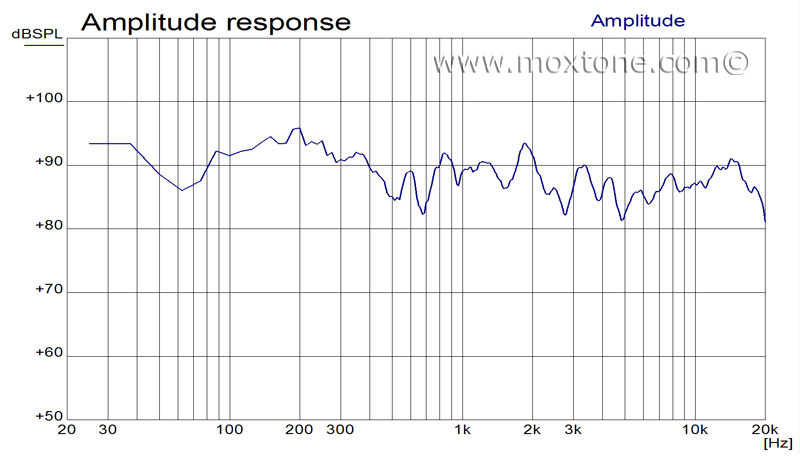

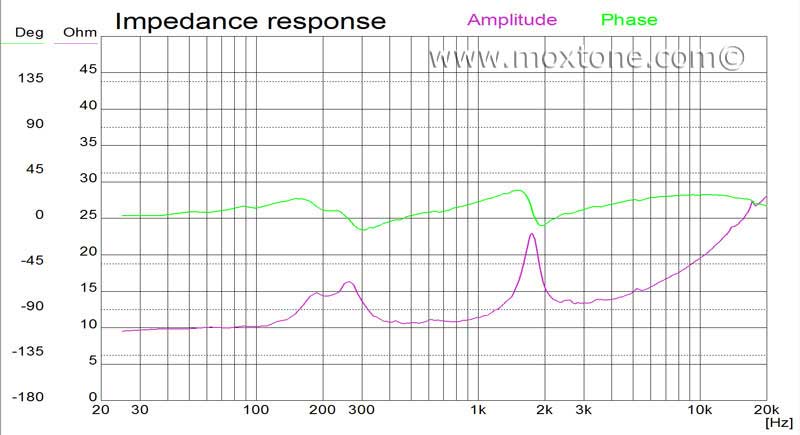

Impedance/phase response of the tweeter Frequency response at the low-pass output of the crossover Frequency response at the high-pass output of the crossover Near-field frequency response of the finished loudspeaker On-axis frequency response of the finished loudspeaker at 1W/1m/8Ω

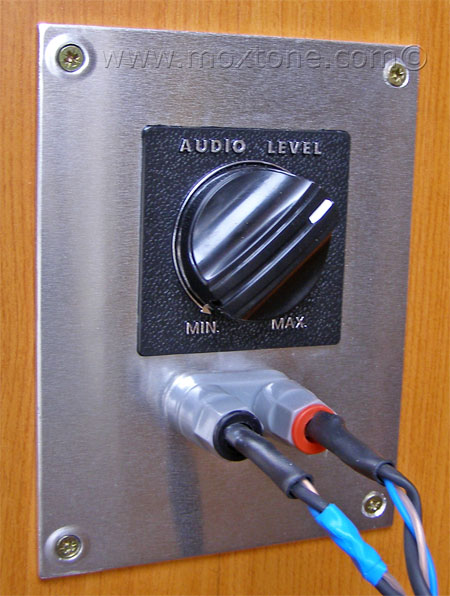

Tannoy L padL pad
